Wired CAN

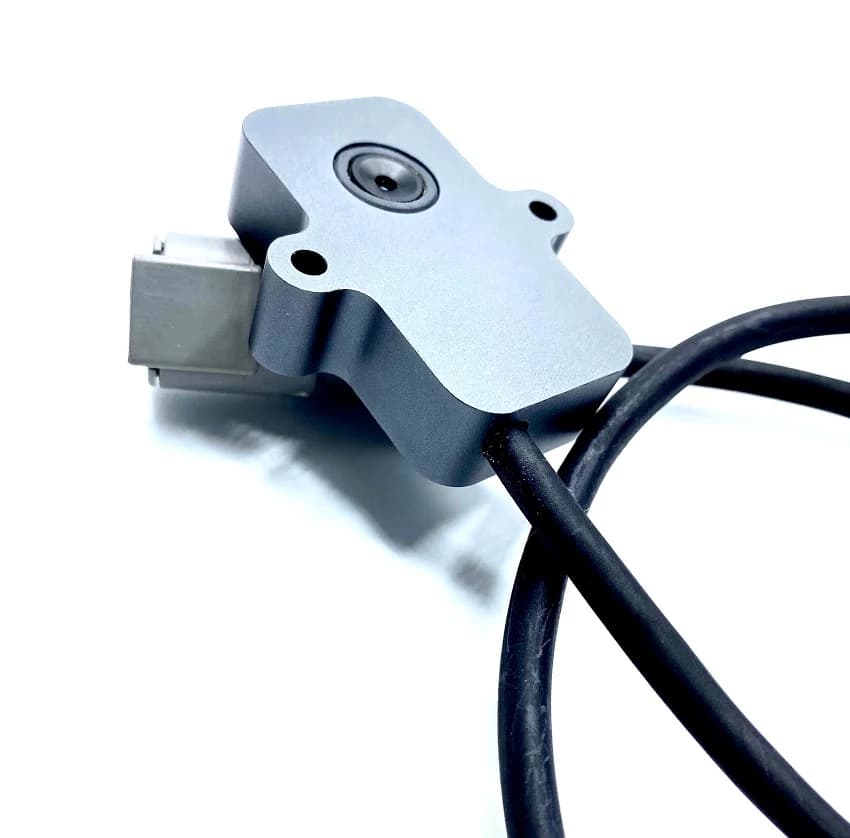

ALS Tire Wired
A multi-channel infrared tire temperature sensor with a direct CAN connection. Configure up to 16 channels and sample at up to 64Hz.
Choose your channel count
Configure 1, 4, 8 or 16 temperature channels across the tire, with a refresh rate of up to 64Hz.
Connect to your CAN loom
A 5–20V supply and direct CAN output suit an installation alongside your existing dash or logger. Check the protocol files for your setup.
Choose your connection
The sensor was offered with an unterminated loom or DTM06-4S connector. Get in touch about connector options and your installation.
Specifications
- Measurement range
- −40 to +300°C
- Temperature channels
- 1, 4, 8 or 16, configurable
- Refresh rate
- Up to 64Hz
- Field of view
- 110° horizontal × 6° vertical
- Sensor weight
- 25g
- Operating temperature
- −40 to +85°C
- Connection
- CAN 2.0A (11-bit identifier)
- Supply
- 5–20V, 15mA
- CAN bit rate
- 500kbps or 1Mbps
- Default base CAN ID
- 0x300
- Temperature resolution
- 0.1°C
Package contents
- 1 ALS Tire Wired sensor with the selected loom
- Documentation
