Wireless to CAN receiver

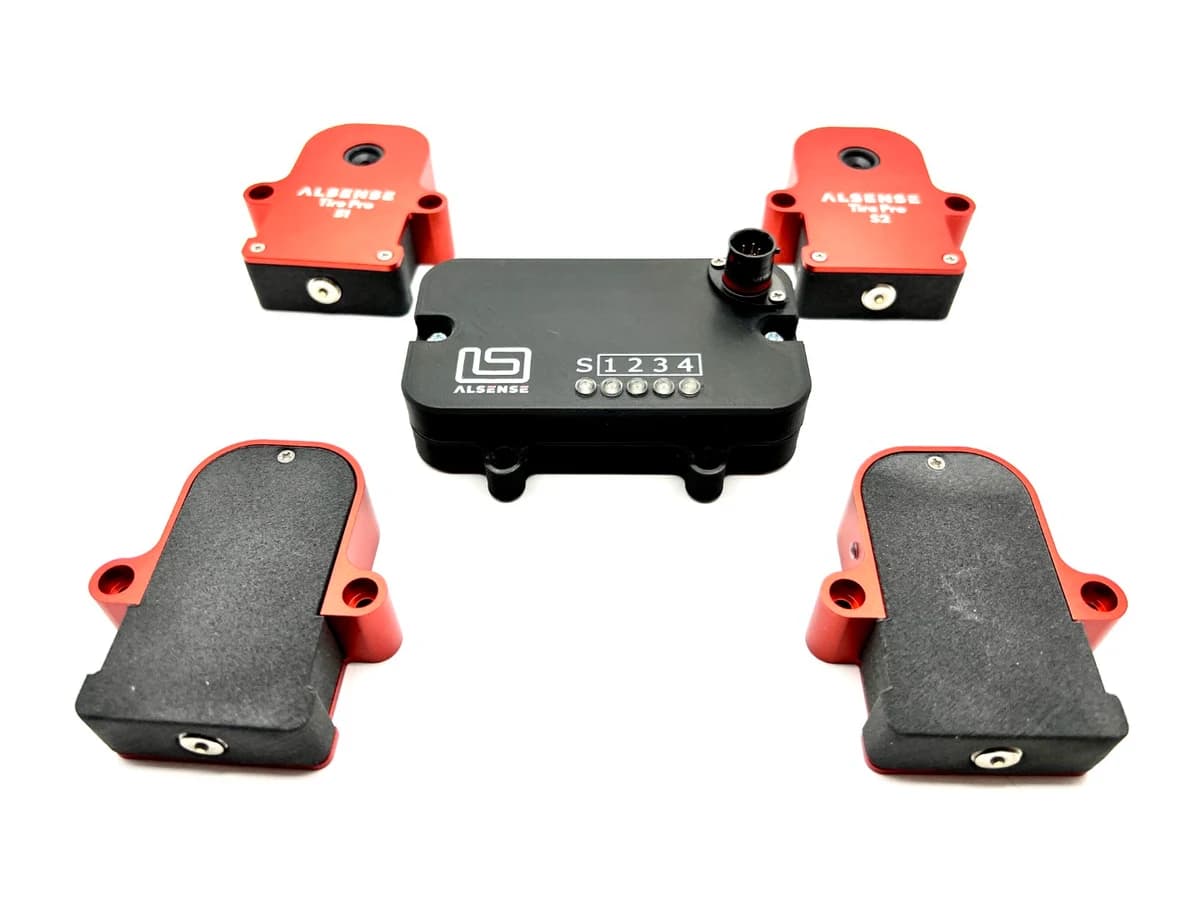

ALS Tire Pro
Wireless tire temperature monitoring with a CAN receiver for your dash or logger. Four sensors measure up to eight channels each, at up to 50Hz.
Four sensors, one receiver
Measure several points across each tire. The sensors send readings wirelessly to a receiver connected to your CAN dash or logger.
Recharge on the car
Magnetic charging connectors let you recharge the sensors without removing them. The original specification provides up to 15 hours of track use.
Configure your CAN output
Set the base CAN ID, refresh rate, emissivity and CAN bit rate for your installation. Use the protocol files below to check your logger setup.
Specifications
- Measurement range
- −40 to +300°C
- Temperature channels
- 4 or 8, configurable
- Refresh rate
- 1–50Hz, configurable
- Field of view
- 110° horizontal × 6° vertical
- Accuracy
- ±1% up to 150°C
- Sensor dimensions
- 64 × 42 × 17.5mm
- Sensor weight
- 57g
- Battery
- 250mAh, rechargeable
- Operating temperature
- −40 to +85°C
- Connection
- Wireless sensors; CAN receiver
- Receiver supply
- 5–20V, 50mA
- CAN bit rate
- 500kbps or 1Mbps
- Default base CAN ID
- 0x200
- Temperature resolution
- 0.1°C
Package contents
- 4 wireless tire temperature sensors
- 1 CAN receiver
- 4 charging cables
- Documentation and required accessories
