Bluetooth Low Energy
ALS Brake BLE

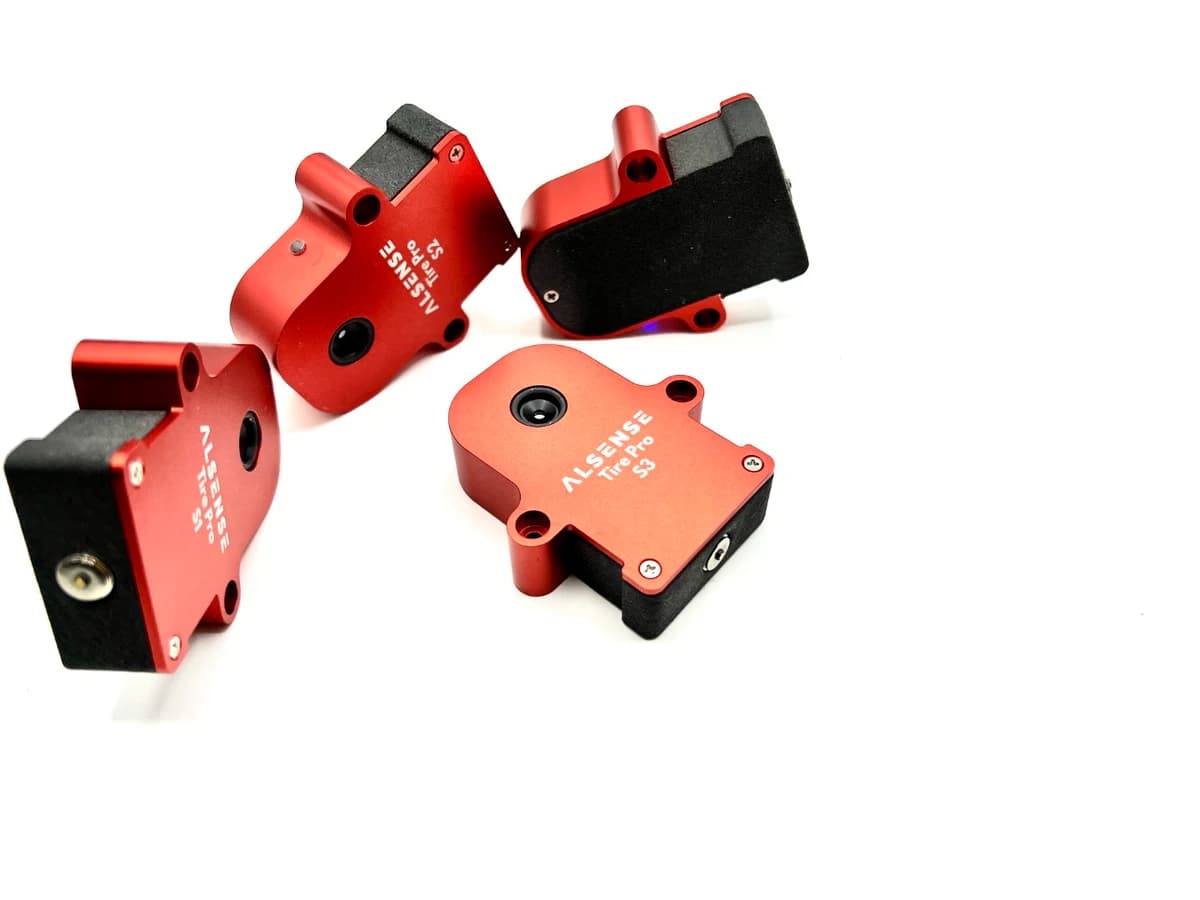

A wireless brake disc temperature sensor that connects to a compatible smartphone app over Bluetooth Low Energy. Three temperature channels, sampled at 10Hz.
Three temperature channels
See temperatures at three points across the brake disc, with readings updated ten times a second.
View on your phone
Send readings to a compatible app over Bluetooth Low Energy. Check the manual and your app’s sensor support before choosing a setup.
Recharge in place
The rechargeable sensor uses a magnetic charging connector, so it can stay fitted to the car while charging.
Specifications
- Temperature channels
- 3
- Refresh rate
- 10Hz
- Field of view
- 110° horizontal × 6° vertical
- Accuracy
- ±1% up to 150°C; ±3% above 150°C
- Sensor dimensions
- 64 × 42 × 17.5mm
- Sensor weight
- 57g
- Battery
- Rechargeable
- Operating temperature
- −20 to +85°C
- Connection
- Bluetooth Low Energy
Package contents
- 1 ALS Brake BLE sensor
- Documentation
Documentation
The archived BLE manual is titled ALS Tire BLE. For brake-specific setup information, contact us.
All sensor downloads
