Description

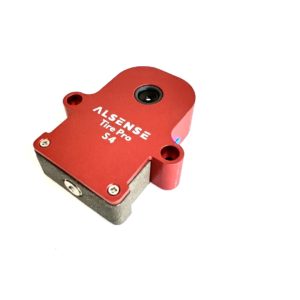

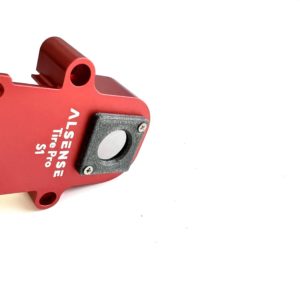

The ALS Tire BLE is a wireless temperature monitoring sensor that connects to most modern smartphones using Bluetooth Low Energy. Easy to install and use with applications such as Harry’s Lap Timer, it’s the perfect companion for the track enthusiasts who are looking to extract more out of their car and themselves
Featuring 3 temperature channels / tire, sampled at 10Hz, it makes for a powerful system that’s very cost effective.
- 3 temperature channels / tire. 10Hz refresh rate
- Bluetooth Connectivity
- Fully wireless communication. Sensors can be placed anywhere on the car
- Data can be monitored in real time or accessed at a later date through Harry’s Lap Timer.
- Up to 15 hours of active use. Magnetic connector offers easy recharging with sensors still installed on car.
Contents
- 1x BLE (Bluetooth Low Energy) Tire Temperature Sensor
- Documentation and required accessories
Specifications
Temperature Range: -40 to +1500°C
Channels: 3
Accuracy: ± 1% up to 150 °C
FOV: 110° x 6°
Refresh Rate: 10 Hz
Battery: 250mAh (built-in charger)
Autonomy: 15 Hrs (track use)
Dimensions: 64.0 x 42.0 x 17.5 mm
Weight: 57g
Material: Aluminum / Polyamide
IP Rating: IP65
Operating Temperature: -40 to +85°C
